Connecting to PuffiMail via Hotspot¶
AP Mode Web Configuration¶
PuffiMail enters AP configuration mode in the following cases:
- When first powered on and not yet configured
- By short-pressing the button 4 times during the selection window
- By pressing and holding the button for 10 seconds to restore factory settings
To trigger this interaction, press and hold the button for more than 2 seconds to wake the device and enter a 20-second selection window.
🔦 LED Behavior Summary¶
| State | LED Behavior | Meaning |
|---|---|---|
| Button held > 2s | 🔁 Fast blinking | Device is awake and waiting for input (AP mode / Reset) |
| AP mode active | 🌫 Breathing light | Wi-Fi hotspot is running, web config page available |
| Deep sleep | ⚫ Off | Device is in low-power sleep mode |
🧭 Available Button Actions¶
During fast blinking:
- Short press 4 times → Enter AP mode
- Long press 10 seconds → Perform factory reset and reboot
- No input → Timeout after 20 seconds, return to deep sleep
💡 Even though a quick tap may wake the device, it is recommended to hold for >2 seconds to ensure it enters interaction mode.
🛠 Configuration Steps¶
-
Connect to the Wi-Fi network: Smartmailbox_Sender
Password: 12345678 -
Open your browser and visit:
http://192.168.4.1 -

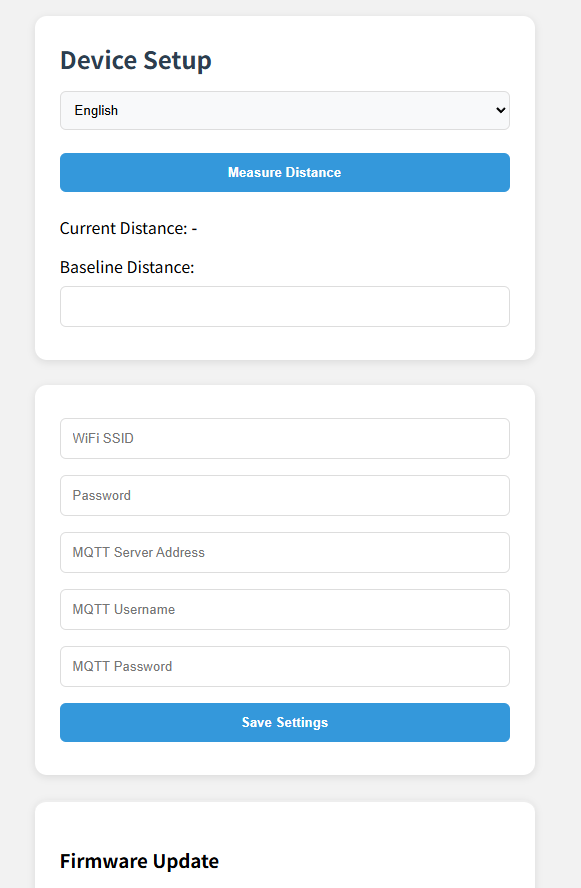

Configure Wi-Fi and MQTT settings, measure and save baseline distance, or upload firmware via OTA.
Once configured and restarted, PuffiMail will automatically connect to your Wi-Fi and exit AP mode.
